Through-type terminal blocks Manufacturers

EAST——Dedicated to excellent quality

AnHui EAST Electronic Technology Co.,Ltd. is a professional China Through-type terminal blocks Manufacturers and Through-type terminal blocks Suppliers. The factory is located in Yingjiang Economic Development Zone, Anqing City, Anhui Province, with a manufacturing base area of 15,000 square meters. Our main products include 5G optical fiber network generic cabling products, terminal blocks, sheet metal non-standard chassis, network connector, dial switch, pin header/ female header and other electronic connectors.

EAST Electronic owns outstanding R & D technology, automation equipment manufacturing capabilities and advanced testing technology in the industry, automation equipment manufacturing capabilities and rigorous testing technology. It can produce products of high reliability and durability, and create value for global customers. Meanwhile, it provides professional ODM / OEM solutions according to the personalized needs to offer customers value-added services.

Read More

News

Industry Knowledge Expansion

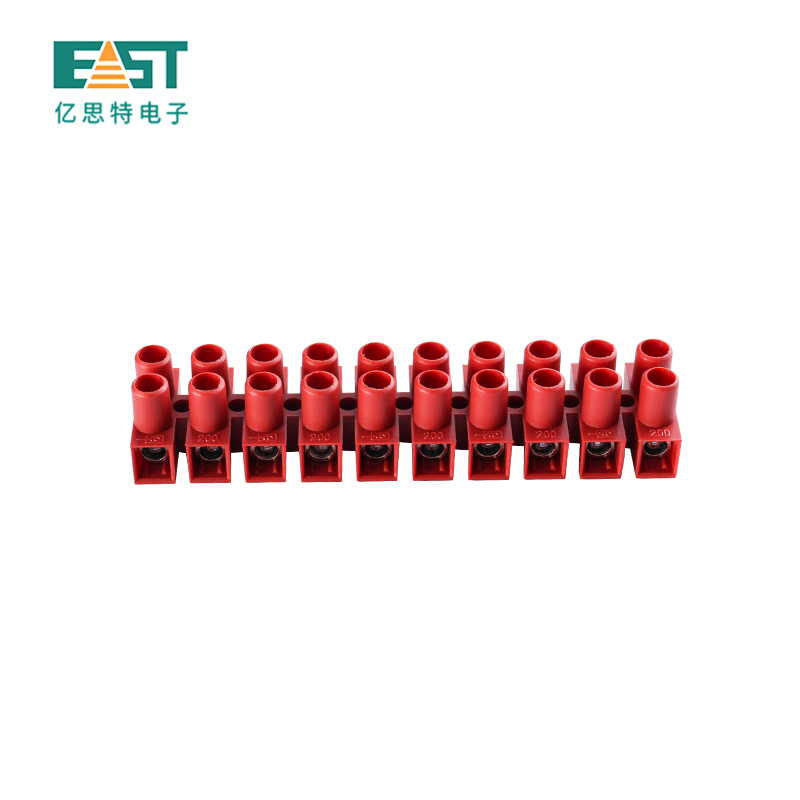

1.Understanding Through-Type Terminal Blocks: Functionality and Design
Through-type terminal blocks serve as essential connectors in electrical circuits, facilitating the seamless transmission of power or signals. Their distinguishing feature lies in their design, which allows conductor paths to extend through the block, enabling continuous electrical connectivity. Unlike traditional terminal blocks that terminate wires at one end, through-type terminal blocks offer enhanced versatility and flexibility in wiring configurations.
The construction of through-type terminal blocks typically involves a durable insulating body, commonly made of materials like polyamide. This robust housing provides protection against environmental factors such as moisture, dust, and temperature fluctuations, ensuring the longevity and reliability of the terminal block in various operating conditions. Within the insulating body, metal clamping components, often composed of copper or brass, exert sufficient pressure to securely grip conductors. This secure clamping mechanism not only ensures reliable electrical contact but also facilitates easy installation and maintenance.
Through-type terminal blocks come in various configurations to accommodate different application requirements and installation preferences. For instance, they may feature screw connections, spring-cage terminals, or push-in connections, each offering distinct advantages in terms of ease of use, conductor retention, and vibration resistance. Screw connections, characterized by their simplicity and reliability, allow for secure attachment of conductors using screws or bolts. Spring-cage terminals, on the other hand, utilize spring-loaded clamps to grip conductors, enabling tool-free installation and providing consistent clamping force over time. Push-in connections offer rapid wire insertion and removal, making them ideal for applications that require frequent wiring changes or quick assembly.
Through-type terminal blocks facilitate efficient routing and organization of conductors within control panels or equipment enclosures. By allowing conductors to pass through the block, they enable neat and orderly wiring arrangements, minimizing clutter and optimizing space utilization. This organized layout not only enhances the aesthetics of electrical installations but also simplifies troubleshooting and maintenance tasks by providing clear access to individual circuits.



2.Advantages of Through-Type Terminal Blocks
The adoption of through-type terminal blocks offers a myriad of advantages, making them preferred choices for electrical connectivity solutions in various industries and applications. One of the primary benefits is their versatility in accommodating different wire types and sizes. Through-type terminal blocks can accommodate a wide range of conductors, including solid wires, stranded cables, and even flexible cords, thereby offering flexibility and compatibility with diverse wiring configurations.
Through-type terminal blocks facilitate modular assembly, allowing for swift configuration changes or component replacements without the need for extensive rewiring. This modular design not only simplifies installation and maintenance tasks but also reduces downtime and operational disruptions, contributing to overall productivity and efficiency.
Another significant advantage of through-type terminal blocks is their inherent safety and reliability. The robust construction and secure clamping mechanisms of these terminal blocks minimize the risk of loose connections, electrical faults, and potential hazards such as short circuits or arcing. This ensures uninterrupted operation and protects equipment, personnel, and assets from damage or injury.
Through-type terminal blocks promote organizational efficiency and streamlined workflows through their compatibility with standardized marking and labeling systems. Clear identification of terminals and circuits simplifies troubleshooting procedures, reduces the time and effort required for maintenance, and enhances overall system reliability.
Through-type terminal blocks offer cost-effective solutions for electrical connectivity, thanks to their durable construction, long service life, and minimal maintenance requirements. By reducing the need for frequent replacements or repairs, they help minimize lifecycle costs and optimize resource utilization, ultimately contributing to greater cost savings and operational sustainability.
