EAST——Dedicated to excellent quality

AnHui EAST Electronic Technology Co.,Ltd. is a professional China Fiber optic jumper and tail fiber Manufacturers and Fiber optic jumper and tail fiber Suppliers. The factory is located in Yingjiang Economic Development Zone, Anqing City, Anhui Province, with a manufacturing base area of 15,000 square meters. Our main products include 5G optical fiber network generic cabling products, terminal blocks, sheet metal non-standard chassis, network connector, dial switch, pin header/ female header and other electronic connectors.

EAST Electronic owns outstanding R & D technology, automation equipment manufacturing capabilities and advanced testing technology in the industry, automation equipment manufacturing capabilities and rigorous testing technology. It can produce products of high reliability and durability, and create value for global customers. Meanwhile, it provides professional ODM / OEM solutions according to the personalized needs to offer customers value-added services.

Read More


Industry Knowledge Expansion

1. What Are Fiber Optic Jumpers and Tail Fibers, and How Do They Facilitate Network Connectivity?
Fiber optic jumpers, often referred to as patch cords or patch cables, and tail fibers are fundamental components in fiber optic networks, facilitating seamless connectivity and data transmission between various network devices and components. These components play a crucial role in establishing physical links within the network infrastructure, enabling the efficient transfer of optical signals across the network.

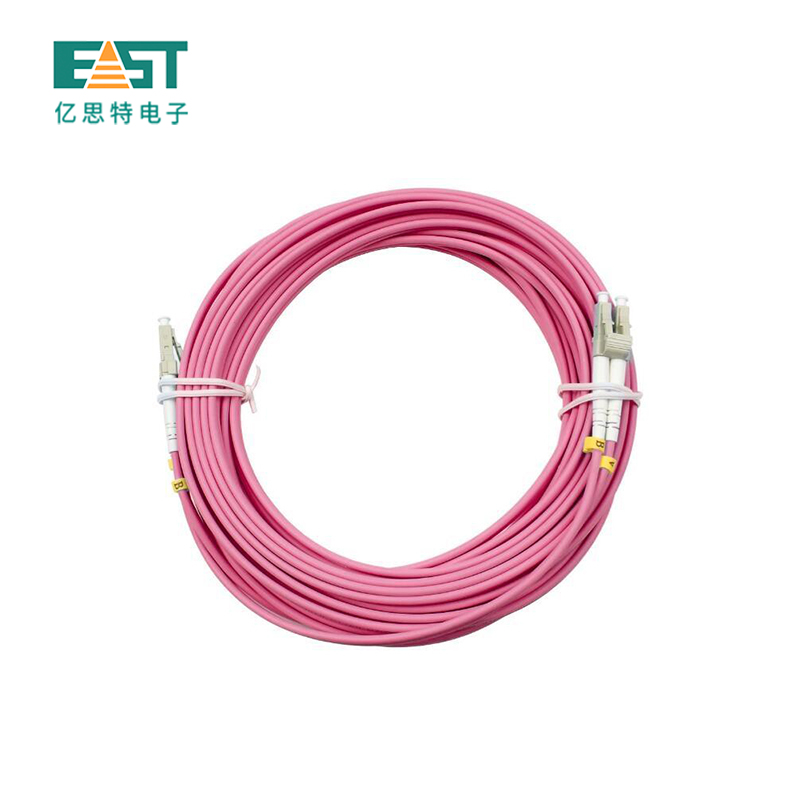

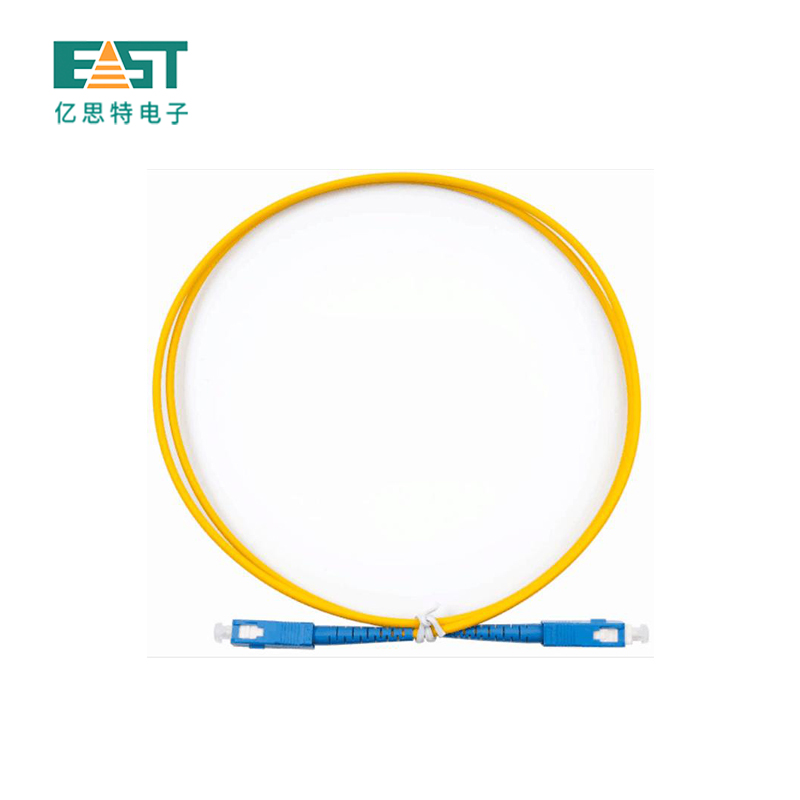

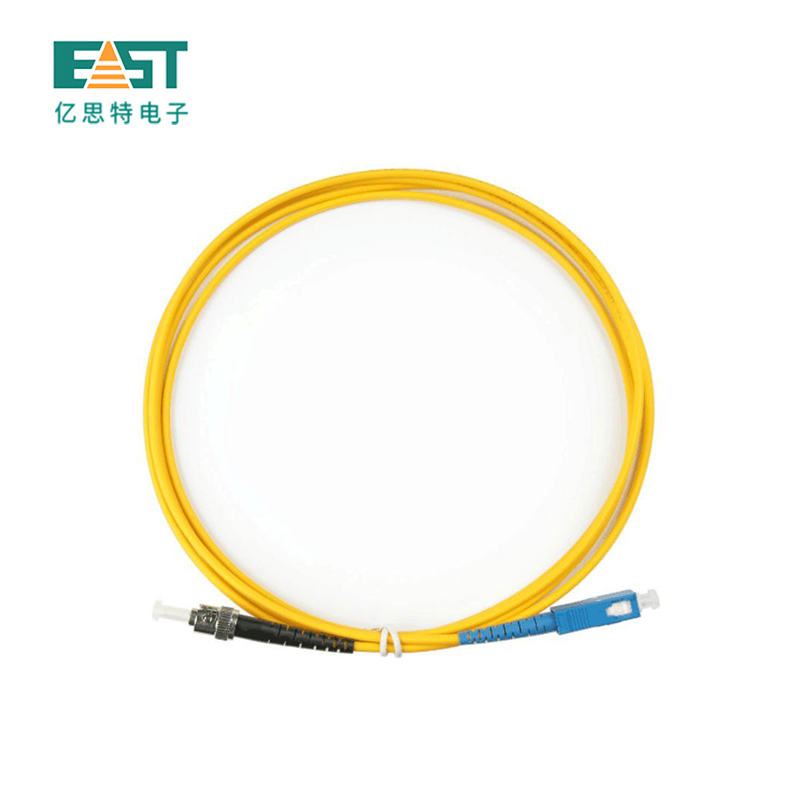

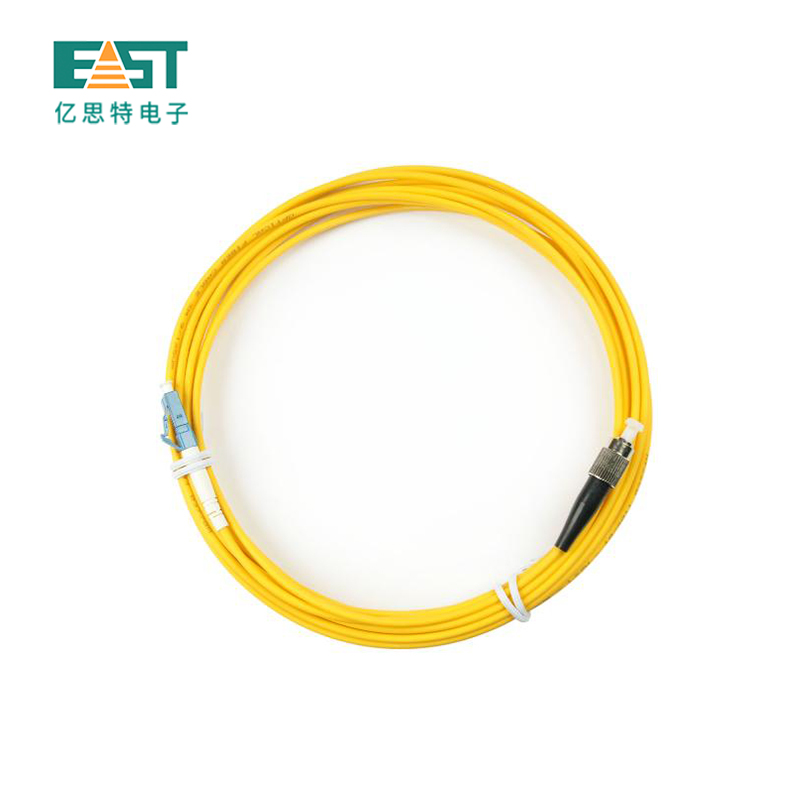

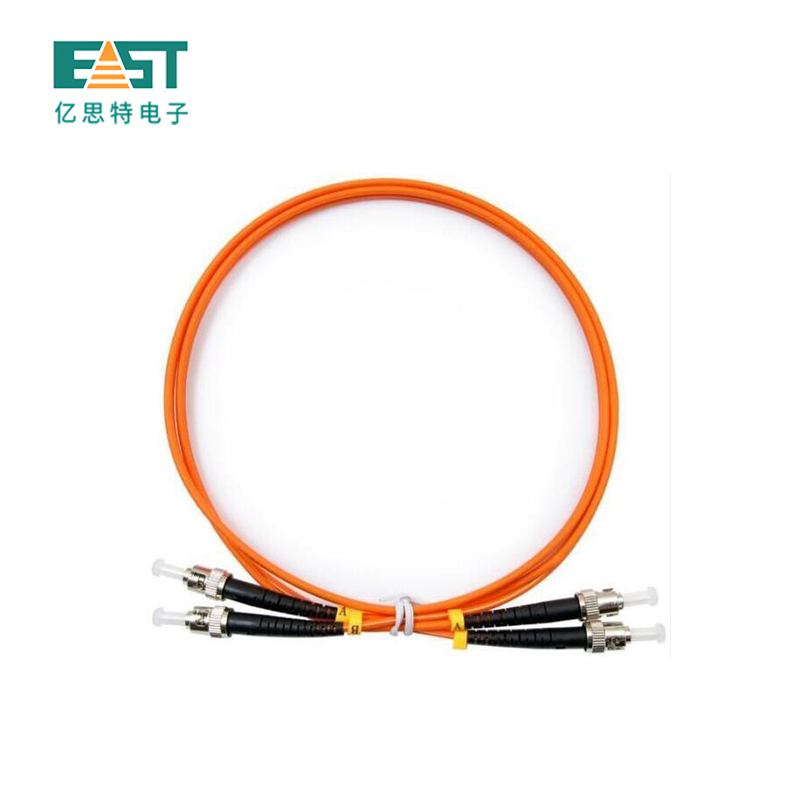

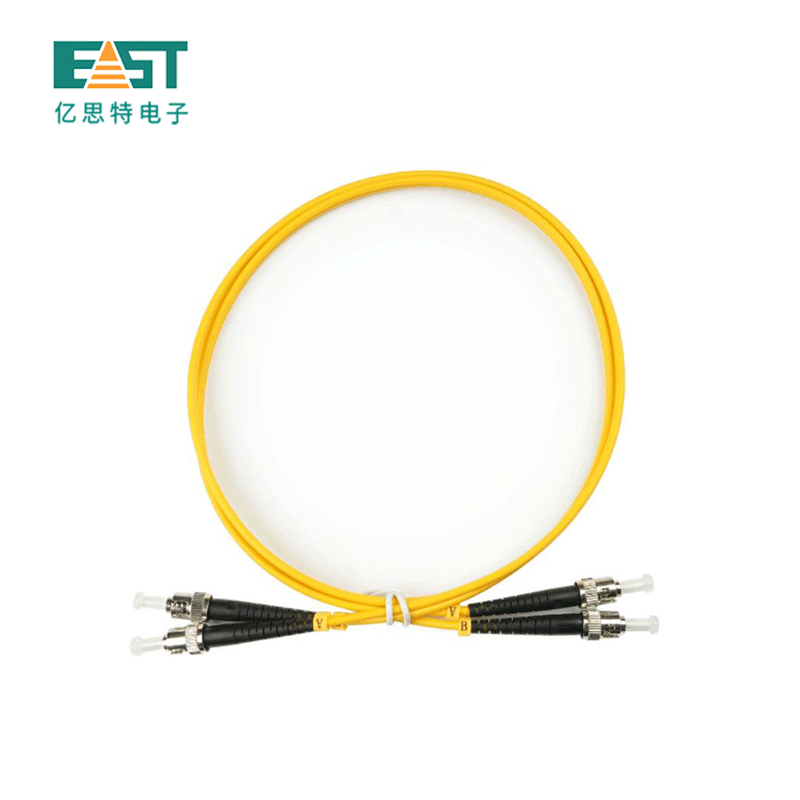

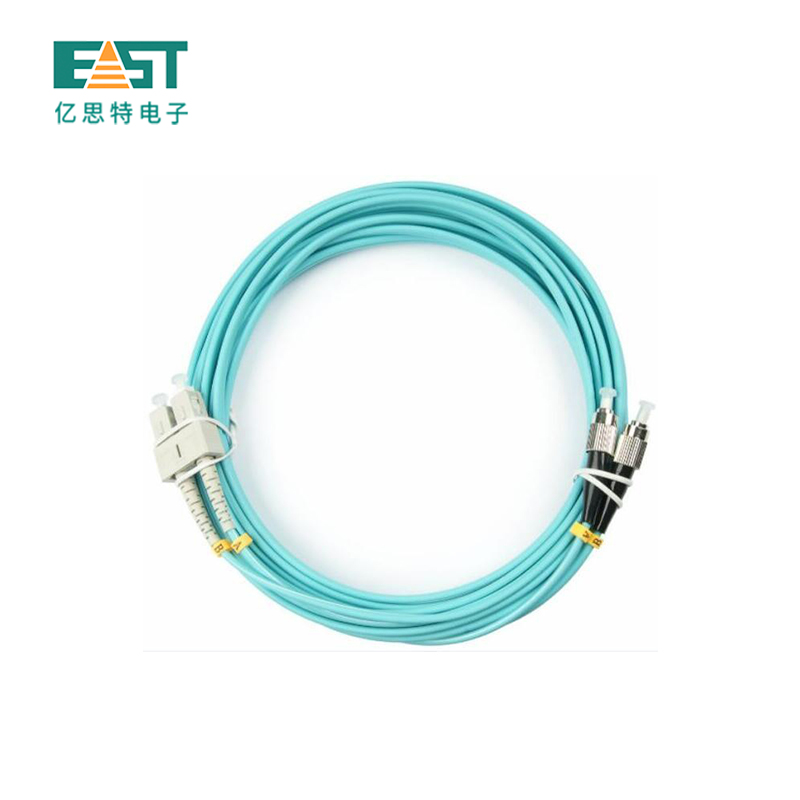

Defining Fiber Optic Jumpers: Fiber optic jumpers are short, flexible cables terminated with connectors on both ends. These connectors can vary depending on the specific application and network requirements but commonly include LC, SC, ST, and MTP/MPO connectors. The cables themselves consist of optical fibers encapsulated within protective jackets, which shield them from environmental factors and mechanical stress. The primary function of fiber optic jumpers is to establish temporary or permanent connections between different network devices, such as switches, routers, servers, and optical transceivers, allowing for the seamless transmission of data or signals.

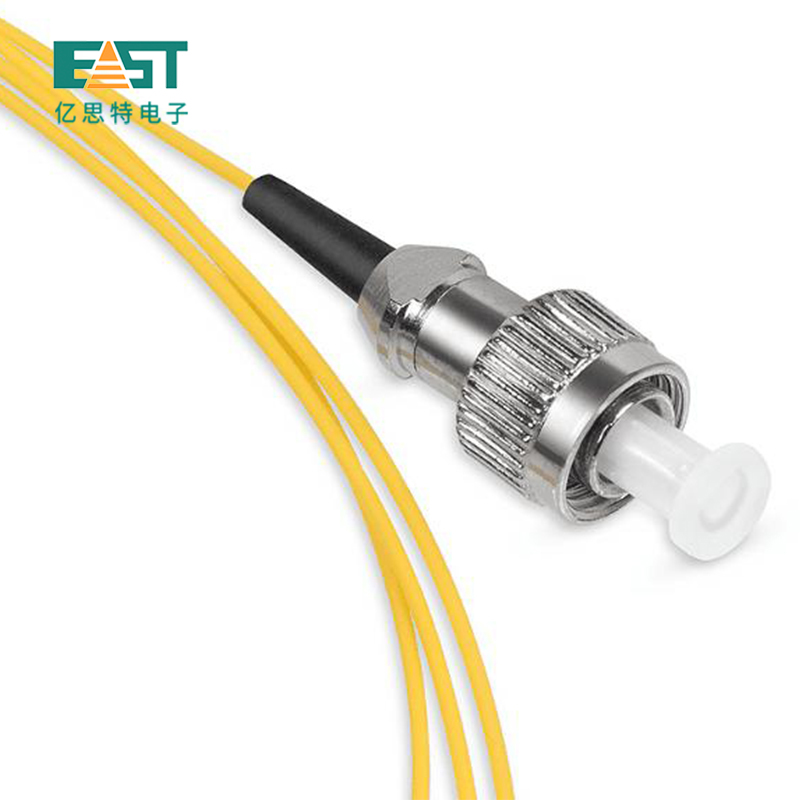

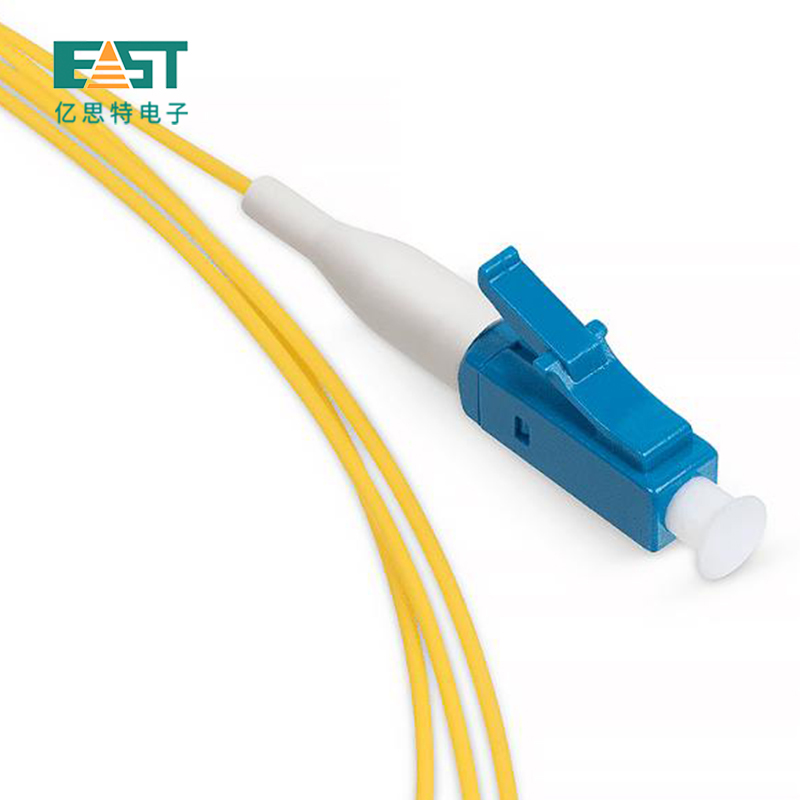

Understanding Tail Fibers: Tail fibers, also known as pigtail fibers, are essentially the unconnectorized ends of optical fibers. Unlike fiber optic jumpers, which are terminated with connectors, tail fibers are typically left bare or stripped at one end. These fibers are commonly used in termination panels, fiber distribution frames, splice enclosures, or optical termination boxes. Tail fibers provide a means for connecting to other optical components, such as pigtails, connectors, or splices, enabling the integration of optical fibers within the network architecture.

2. What Types of Fiber Optic Jumpers and Tail Fibers Are Available, and How Do They Differ?
The availability of various types of fiber optic jumpers and tail fibers allows for customization and optimization of network connectivity based on specific application requirements and performance criteria. Understanding the differences between these types is crucial for selecting the most suitable options for a given network deployment.
Single-mode vs. Multimode Jumpers: Fiber optic jumpers are categorized into single-mode and multimode variants, each designed to support different transmission modes and distances. Single-mode jumpers utilize a narrow core size, typically around 9 microns, which allows for the propagation of a single mode of light. This design results in minimal dispersion and attenuation, making single-mode jumpers ideal for long-haul and high-speed applications over extended distances. In contrast, multimode jumpers feature a larger core size, typically 50 or 62.5 microns, allowing for the propagation of multiple modes of light. While multimode jumpers offer lower cost and easier installation, they are generally limited to shorter distances and lower bandwidth capacities compared to single-mode jumpers.

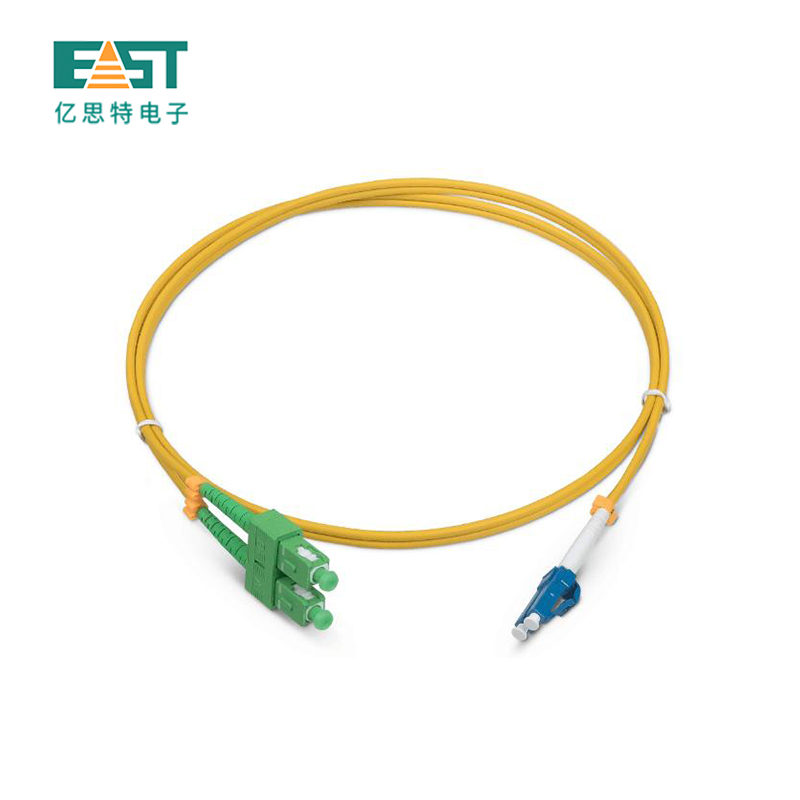

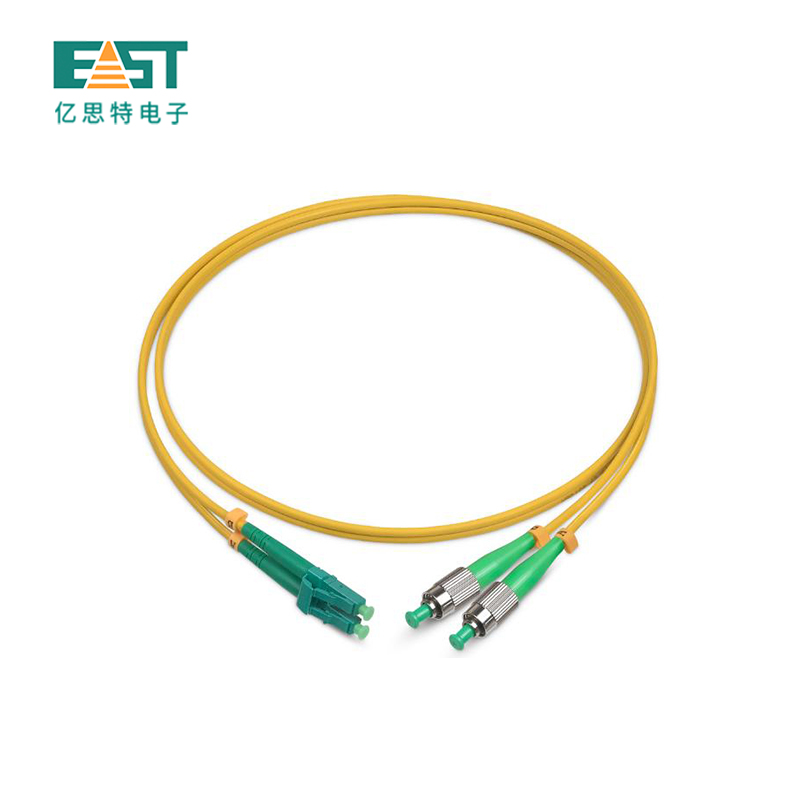

Connector Types and Polishes: Fiber optic jumpers are available in a variety of connector types and polishes, each offering distinct advantages in terms of performance, density, and ease of installation. Common connector types include LC (Lucent Connector), SC (Subscriber Connector), ST (Straight Tip), and MTP/MPO (Multi-fiber Push-On/Pull-off). Each connector type features specific characteristics and benefits, such as compact size, low insertion loss, high density, or compatibility with specific optical components. Additionally, fiber optic jumpers may feature different connector polishes, such as Ultra Physical Contact (UPC) or Angled Physical Contact (APC), which affect signal loss, reflection, and insertion loss characteristics. UPC connectors provide reliable optical performance with minimal insertion loss and back reflection, making them suitable for most applications. APC connectors, on the other hand, feature an angled end face, which reduces back reflection and minimizes signal loss, making them ideal for applications requiring high optical performance, such as high-speed data transmission or dense wavelength division multiplexing (DWDM) systems.

3. How Do Fiber Optic Jumpers and Tail Fibers Ensure Reliable and Efficient Network Performance?
Reliability and performance are critical considerations in fiber optic networks, and the design and construction of fiber optic jumpers and tail fibers play significant roles in ensuring consistent and efficient network operations.
Quality Construction and Materials: Fiber optic jumpers and tail fibers are constructed using high-quality materials and precision manufacturing techniques to withstand environmental factors, mechanical stress, and signal degradation. The optical fibers themselves are typically made of glass or plastic, chosen for their low attenuation, high bandwidth, and excellent optical properties. The connectors are made of durable materials, such as ceramic or stainless steel, to ensure reliable mechanical and optical performance. Additionally, the protective jackets surrounding the fibers are designed to provide robust protection against moisture, abrasion, bending, and other physical hazards, ensuring long-term reliability and durability in demanding network environments.
Low Signal Loss and Interference: Signal loss and interference can significantly impact network performance and reliability, leading to degraded signal quality, increased error rates, and decreased transmission distances. Fiber optic jumpers and tail fibers are engineered to minimize signal loss, attenuation, and crosstalk through precise alignment of fibers, high-quality connectors, and low-loss transmission mediums, such as single-mode fibers. The connectors are carefully polished to ensure optimal surface smoothness and geometry, minimizing insertion loss and back reflection. Additionally, the fibers themselves are manufactured to strict tolerances, ensuring uniformity and consistency in optical performance across the cable length. These design considerations result in reliable signal transmission, minimal distortion, and efficient data transfer across the network, even in high-speed or high-density environments.
Flexibility and Versatility: In dynamic network environments, flexibility and versatility are essential for accommodating changing requirements, configurations, and technologies. Fiber optic jumpers and tail fibers offer flexibility in routing, installation, and configuration, allowing for easy scalability, reconfiguration, and maintenance without disrupting network operations. The cables are designed to be lightweight, flexible, and maneuverable, facilitating easy routing through cable trays, conduits, and tight spaces. The connectors are available in various configurations, including straight, angled, or keyed versions, to accommodate different equipment layouts and installation requirements. Additionally, the cables come in various lengths, colors, and connector combinations, allowing for custom configurations tailored to specific applications or installations. Whether deploying new connections, reconfiguring network layouts, or troubleshooting connectivity issues, fiber optic jumpers and tail fibers provide agility, adaptability, and ease of use to meet the demands of modern networks.
